SERIE DVM120
With the introduction of the CARDINAL 120 range,
SOMMER
CABLE
is embarking on a new direction in the field of active components and audio tools. We had tried and proven designs which have reworked into a new range with a new housing concept. We believe this range meets the highest electronic, mechanical and audiophile requirements.

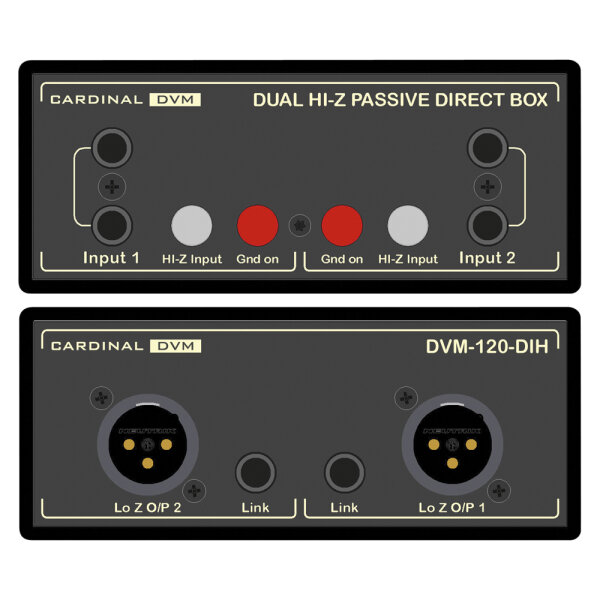

DVM-120-DIH High-impedance Dual Direct Box – the specialist!
The simple and reliable way of adapting even very demanding sources to microphone inputs. The special high-quality
Lundahl transformers with 22 dB or 28 dB
attenuation are suitable for high input levels and stand out by their ultra low distortion and
neutral response even at very low frequencies. Each
channel has an input with two bridged jack sockets; if
necessary, the input and output grounds can be linked
with the ground lift switch. The output signals are on
male XLR connectors.
The I/P impedance switch is used to switch
between
the
normal
input impedance of 280 kΩ and the
high impedance of 560 kΩ. In the HIGH position, the
design-related higher attenuation of 28 dB will occur.
Advantages:
Uncompromising mechanical design – due to 18 mm recessed front panels, 3 mm thick aluminium profile & inset stacking feet
Integrated wide-range mains supplies (90 – 240 V) – direct connection via IEC switch/fuse combination
Developed for highest audiophile requirements
Exclusive use of high-quality components
Miscellaneous:
Frequency response:
Source 200 Ω, load 2k Ω: . . . . . . –0.1 dB/+0.1 dB/–0.5 dB 10 Hz/20 kHz/100 kHz
Source 68 kΩ, load 2 kΩ:. . . . . . . –0.1 dB/–0.7 dB/–5.5 dB 10 Hz/20 kHz/100 kHz
Source 47 kΩ, load 2 kΩ: . . . . . . . –0.7 dB/–6.1 dB/–17.3 dB 10 Hz/20 kHz/100 kHz
Application:
Super high-grade audio tools and ideal helpers for live and studio applications
| Item information |
Value |
| : |
High Impedanz: ? 0,008 % / 40 kHz (Messbandbreite 80 kHz), High Impedanz: ? 0,012 % / 20 Hz ? 0,008 % / 1 kHz, ? 280 k? bzw. ? 560 k? / 1 kHz |
| : |
HighZ DI-Box |
| : |
Professional |
| : |
@ 20 Hz > 100 dB | @ 1 kHz > 95 dB | @ 20 kHz > 60 dB |
| : |
4.7244 |
| : |
120 |
| : |
1,2 |
| : |
2.6455 |
| : |
? 0,004 % / 40 kHz (Messbandbreite 80 kHz), ? 0,008 % / 20Hz ? 0,004 % / 1 kHz |
| : |
260 |
| Content: |
1,00 piece
|
