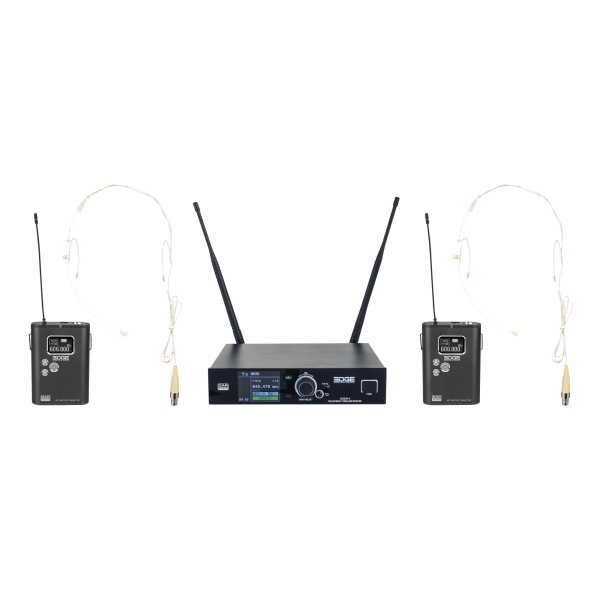

The DAP EDGE EBS-2 is a wireless belt pack microphone system with two belt packs, easy operation, and a reliable signal without interference. It is a set consisting of a microphone receiver, two belt pack transmitters and two high-quality cardioid condenser headsets for a clear and pure sound. The receiver has an integrated antenna distributor, which means that you can daisy-chain the antenna signals to multiple receivers and use one set of antennas for all of them.
The EDGE EBS-2 has a practical colour coding functionality, which enables you to instantly recognise the dedicated receiver that is paired with your belt pack when you are using multiple (up to 8) wireless microphones simultaneously. The receiver can quickly scan the frequency range and find an unused frequency to avoid signal interference for the best reception possible. Another great feature is the infrared sensor on the beltpacks and receiver. It allows you to easily set all important settings on the receiver and transfer them automatically as soon as you hold the beltpack(s) in front of the receiver.
This wireless dual beltpack set comes with many accessories to complete your installation, such as a 19" rack installation kit, power supply, RF antenna and two windscreens.
UHF true-diversity receiver with antenna distributor and full-colour LCD
Band Scan function for interference elimination
Two beltpack transmitters with OLED display
High-quality cardioid condenser headsets
Incl. 19” rack install kit, power supply, and antennas
Wireless Audio Frequency Start: 610 MHz
Wireless Audio Frequency End: 670 MHz
RF Power: 30 mW
RF Bandwidth: 60 MHz
THD Level: < 1.0 %
Signal-to-noise Ratio: > 100 dB
Microphone Sensitivity: 1.9 mV
Max. SPL: 133 dB
Frequency Response Minimum: 50 Hz
Frequency Response Maximum: 19000 Hz
Phantom Power: 5 V
Mono Input Connector: 4-pin mini XLR
RF Antenna Inputs: 2
RF Antenna Input Connection: BNC
Microphone Output: 2
Microphone Output Connection: 3-pin XLR
Battery Type: AA
Runtime Average: 10 h
Transmitter Type: Beltpack
Receiver Type: True diversity
Power Connector In: Low Voltage DC plug
Power Connector Out: Low Voltage DC Socket
Transmitter Weight: 0.11 kg
