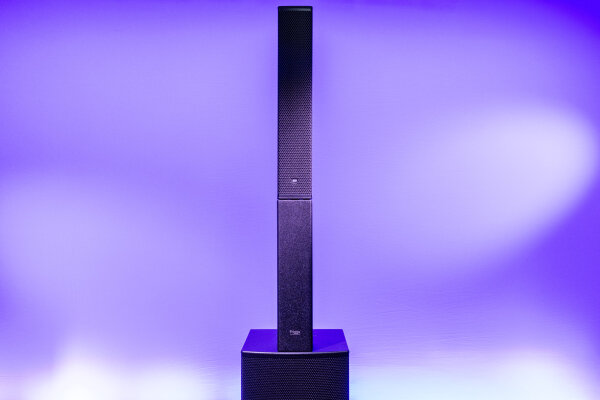

The DAP Frigga is an active PA speaker system with one subwoofer and one column speaker, suitable for singer-songwriters, corporate presenters, mobile DJs, nightlife venues, and bands. It offers three inputs: XLR microphone input with gain and clip indicator, XLR line input with passthrough, and Bluetooth with TWS support. The mixed output combines all signals. The SUB level control and Master level adjust the balance and volume. Status LEDs indicate the amplifier status.
The Frigga features an active dual 12" subwoofer with a built-in amplifier for the column speaker. The column speaker includes six 4" neodymium midrange drivers and a 1.5" neodymium compression driver. The built-in amplifier delivers 1000 W RMS (2000 W peak) across three channels. Two mounting poles adjust the height for various setups.
The Frigga comes with cables, mounting poles, and spacers and is available in black or white. Please note that microphone and line signals are not transmitted via Bluetooth when using TWS.
1000 W RMS, max SPL of 134 dB at 1m (column)
Multifunctional setup with two height options for optimum coverage
Bi-amp satellite
Microphone, line and Bluetooth 5.0 inputs with TWS
Cables, mounting poles and spacer included
Power Amplifier RMS Output: 1000 W
Power Amplifier Peak Output: 2000 W
Top Cabinet High Driver Power: 250 W
Top Cabinet Low Driver Power: 250 W
Subwoofer Power: 500 W
Mono Inputs: 2
Mono Input Connector: 3-pin XLR
THD Level: < 0.3 %
Signal-to-noise Ratio: > 105 dB
Amp Technology: Class D /Class H
Speaker System: Active Subwoofer/ Active Bi-amp 2-way
Speaker Sensitivity (1 W/1 m): 96 dB
Max. SPL Subwoofer at 1 m: 132 dB
Max. SPL Top Cabinet at 1 m: 134 dB
Frequency Response Minimum: 40 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 12"
Woofer Voice Coil Diameter: 2.5"
Satellite Woofer Diameter: 4"
Satellite Woofer Voice Coil Diameter: 1"
Compression Driver Diameter: 1"
Compression Driver Voice Coil: 1.8"
Subwoofer Dispersion Angle (Horizontal): 360°
Subwoofer Dispersion Angle (Vertical): 180°
Satellite Dispersion Angle (Horizontal): 110°
Satellite Dispersion Angle (Vertical): 30°
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 1100 W
Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
Top Cabinet Height: 765 mm
Top Cabinet Width: 135 mm
Top Cabinet Depth: 200 mm
Subwoofer Height: 865 mm
Subwoofer Width: 430 mm
Subwoofer Depth: 485 mm
Material: Plywood
Top Cabinet Weight: 9.2 kg
Subwoofer Weight: 37 kg
