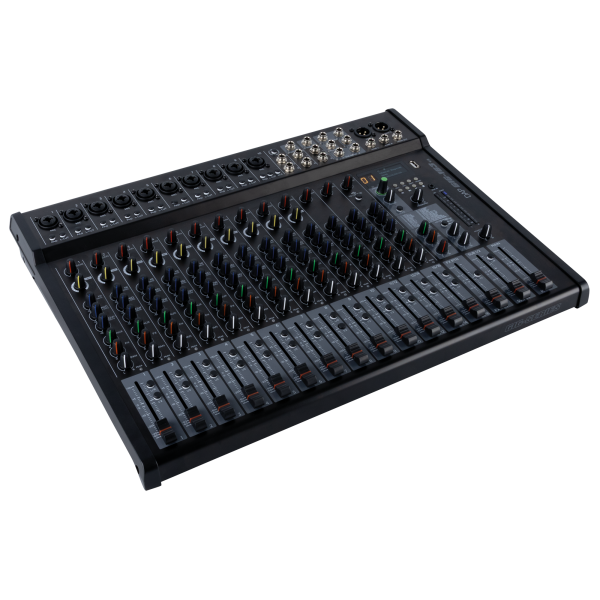

DAP GIG-163 V2 16-channel analogue mixer with FX

DAP GIG-163 V2 16-channel analogue mixer with FX

SKU: VT-10074
GTIN: 8717748615794
Category: Live mixers
Manufacturers: DAP

435,00 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 6 Workdays (DE - int. shipments may differ)

Piece

Description

The DAP GIG-163 V2 is a compact yet capable 16-channel mixer designed for live performances, studio sessions and hybrid setups. It offers a wide range of inputs, routing options, professional features and onboard effects, making it ideal for musicians, sound engineers and content creators who demand flexibility without compromising on sound quality.
It features 10 XLR/jack combo inputs with a mic preamp, -20 dB pad switch, 48 V phantom power, and low-cut filter. Channel 10 includes a Hi-Z switch, allowing direct connection of instruments such as electric guitars. All ten mono channels offer gain control, compressor, 3-band EQ, FX and AUX send knobs, pan control, mix level fader, and clip LED indicators. Channels 11-16 provide stereo line-level inputs via dual 6.3 mm jacks, each with gain control, 3-band EQ, FX and AUX send level, pan control and mix level fader. Additional inputs include a 3.5 mm Aux minijack, a USB media player and BT connectivity, which all share a level knob.
The internal effects engine provides a selection of 24 effects, including reverbs, delays and modulations that can be applied to all channels except the 3.5 mm minijack input, BT input and USB media player. For external processing, an FX Sends output allows routing to outboard gear, with the option to loop the processed signal back into an unused channel. This output can also serve as a monitor send bus, offering additional flexibility. A dedicated Aux bus is available for creating custom monitor mixes, while a stereo subgroup with its own fader and output enables grouped control and parallel processing. All channels except the minijack and USB media player can be routed to this subgroup. For studio use, a control room output with separate level control runs in parallel to the headphone output.
The USB-C interface allows direct connection to a computer for recording or playback, the latter is shared with channels 15 and 16. The main output is available via balanced XLR and jack connectors, and is also offered as a mono sum with separate level control. A clear LED VU meter provides visual feedback of output levels, and the mixer is powered by a dedicated ±15V DC external power supply for stable operation.

10x XLR/jack combo with -20 dB pad, phantom power, compression, 3-band EQ, low-cut
3x XLR stereo line input with 3-band EQ, pan and level controls
24 internal effects and FX send plus Aux send outputs
Stereo subgroup with fader
USB-C interface with 2-in/2-out and USB-A interface with media player/recorder
Hi-Z switch on channel 10 for direct instrument input

Mono Inputs: 10
Mono Input Connector: 3-pin XLR / TRS balanced 6.3 mm
Mono Input Gain Range: 60 dB
Mono Input Impedance: 3000 ?
Stereo Inputs: 3
Stereo Input Connector: TRS balanced 6.3 mm
Stereo Input Gain Range: 20 dB
Stereo Input Impedance: 10000 ?
Auxiliary Inputs: 1
Auxiliary Input Connector: TRS balanced 3.5 mm
Auxiliary Input Impedance: 10000 ?
FX Return Inputs: 1
FX Return Connector: TRS balanced 6.3 mm
Main Outputs: 1
Main Output Connector: 3-pin XLR / TRS balanced 6.3 mm
Main Output Impedance: 100 ?
Auxiliary Outputs: 1
Auxiliary Output Connector: TRS balanced 6.3 mm
Auxiliary Output Impedance: 120 ?
Group Outputs: 2
Group Output Connector: TS unbalanced 6.3 mm
FX Send Outputs: 1
FX Send Connector: TRS balanced 6.3 mm
FX Send Impedance: 120 ?
Control Room Output: 1
Control Room Output Connector: TRS balanced 6.3 mm
Control Room Output Impedance: 120 ?
Headphone Output: 1
Headphone Output Connector: TRS balanced 6.3 mm
Headphone Output Impedance: 32 ?
Audio Interface: Yes
Audio Interface USB Input: 1
Audio Interface Input Connection: USB-C
Audio Interface Supported Input Channels: 2
Audio Interface Supported Output Channels: 2
Media Player: Yes
Audio Module Supported Files: MP3 / WAV / WMA
Audio Module Maximum Storage Size: 64 GB
Audio Module Media In/Out: USB-A
Audio Module USB Type: 2.0
THD Level %: < 0.2 %
Signal-to-noise Ratio: > 108 dB
Crosstalk: -86 dBu
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Dynamics Processing: Compressor
Built-in FX: Yes
FX Types: Chorus / Delay / Echo / Flanger / Hall / Phaser / Plate / Reverb / Room / Tremolo
BT: Yes
BT Version: 5.0
BT Range: 20 m
Display: 7-segment
Power Supply: 100-240 V AC 50/60 Hz
Output voltage: 15 V DC
Power Consumption: 16 W
Power Connector In: Low Voltage DC plug
Adapter type: AC-DC adapter
Input voltage: 220-240 V AC, 50/60 Hz
Output voltage: 15 V DC
Output current DC (mA): 1000 mA
Fader Length: 70 mm
Height (mm): 75 mm
Width (mm): 512 mm
Length (mm): 367 mm
Housing: Metal
Colour: Black
Weight: 5.1 kg
IP Rating: IP20 (indoor use only)
LED Indicators: +48V / BT Pairing / Output level / Power
Handles: All sides
Included Accessories: Adapter
