Compact (1U) and lightweight Class D fixed installation amplifier
Lo-Z (2, 4, 8 ohms), mono, stereo and bridge modes

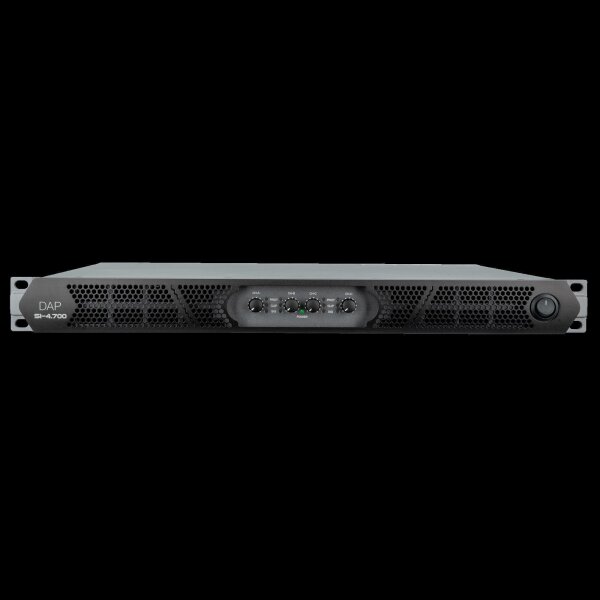

Universal SMPS (100 - 250 V AC) with PFC The DAP SI-4.700 is a compact and lightweight 4-channel power amplifier for fixed installations. In a 1U rack space it delivers 4x 700 W into 4 ohms, is capable of driving 2-ohm loads and can be bridged for even more power. It is designed for low impedance and high current with excellent stability.
It has a clip limiter and DC output protection to prevent damage to the loudspeaker. Output overload and short-circuit protection protects the amplifier from faults, as does over-temperature protection and high-temperature power attenuation.
Signal, Clip, Fault and Power LEDs indicate the status of the amplifier. The output level can be adjusted for each channel using the volume controls. Gain can be set on the rear panel for 0.775 V input or 32 dB gain, and a mode switch selects stereo, mono and bridge modes.
The universal switching power supply uses active PFC and soft-switching technology, accepts input voltages from 100 - 250 V AC and is optimised for the audio power amplifier. 2 ohms Stable: Yes
Output per Channel into 8 ohms at 1 kHz: 450 W
Output per Channel into 4 ohms at 1 kHz: 700 W
Output per Channel into 2 ohms at 1 kHz: 1000 W
Bridge Output into 8 ohms at 1 kHz: 1350 W
Bridge Output into 4 ohms at 1 kHz: 2000 W
Output Channels: 4
Output Mode: 4-channel / Bridge / Mono / Parallel / Stereo
Output Connector: Speaker Connector 4 pole
Mono Input Connector: 3-pin XLR
THD Level: < 0.05 %
Signal-to-noise Ratio: > 100 dB
Slew Rate: 50 V/?s
Amp Technology: Class D
Damping Factor: 1000 :1
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 810 W
Height (mm): 45 mm
Width (mm): 483 mm
Length (mm): 296 mm
Rack Units: 1 U
Weight: 5.2 kg
Electronic Protection: Clip limiter / DC voltage / Overheat / Overload / Under voltage
