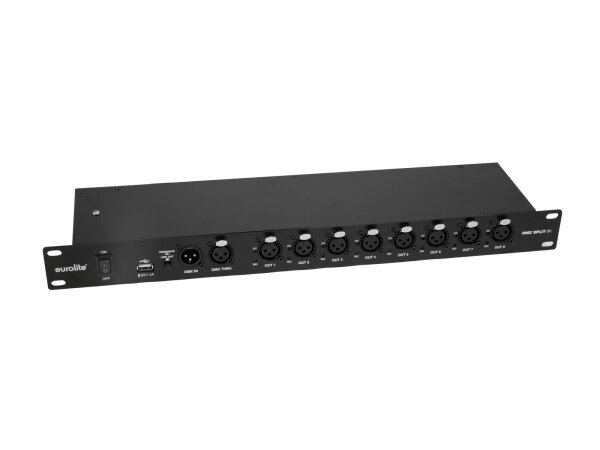

Splitter with 8 galvanically isolated outputs, 3-pin XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs galvanically isolated
- Switchable termination resistor
- (19") 48.3 cm rack installation 1 U
- Each DMX output with independent driver and status indicator
- The device is cooled by passive convection cooling
- Control via DMX
- For application areas such as: Trade fair and shop fitting; installation; mobile use; stage
- Silent operation
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
5 W |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Fuse: |
5 x 20 mm, F 1 A fuse replaceable |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: |
Passive convection cooling |
| Control: |
DMX |
| Housing color: |
Black |
| USB port: |
Type A, 1 A |
| Material: |
Metal |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Mounting depth: |
14 cm |
| Dimensions: |
Width: 48.3 cm
Depth: 12.5 cm
Height: 4.4 cm |
| Weight: |
1.65 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Item weight: |
1,90 kg
|
| Content: |
1,00 piece
|
