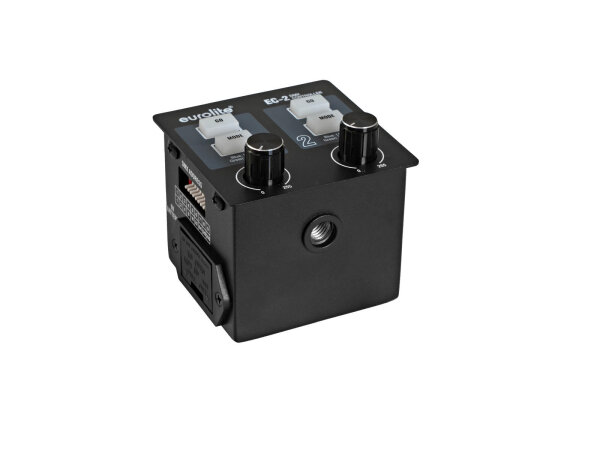

The EC-2 is a compact 2-channel DMX controller with 3-pin XLR output. It is used for easy operation of fog machines, strobes, blinders and other DMX-controlled devices on stage. Each channel has a backlit trigger and mode button as well as a control knob to set the DMX values. An M10 threaded insert enables attachment to a microphone stand, for example. Delivery includes a power adapter. Operation with a 9 V battery is also possible.
Compact 2-channel DMX controller for fog machines, strobes, blinders and other stage lights
- Compact DMX controller for easy application
- Backlit trigger and mode button and control knob to set DMX values per channel
- Can transmit up to 2 DMX channels
- Powered by a battery/battery pack
- Desktop console housing
Scope of delivery
- 1 x controller
- 1 x user manual
- 1 x external mains adapter
| Power supply: |
100-240 V AC, 50/60 Hz
9V DC 50 mA |
| Pin configuration: |
Inside + / outside - |
| Power consumption: |
Approx. 1 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class III |
| Power connection: |
Mains input via coaxial power connector (M) |
| Battery: |
1 x 9.0 V E block (not included) |
| DMX channels: |
Output 2 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Housing color: |
Black matte |
| Attachment system: |
1x M8 thread |
| Control elements: |
Power switch |
| Material: |
Metal, painted |
| Housing design: |
Desktop console housing |
| Dimensions: |
Length: 8 cm
Width: 8 cm
Height: 8.2 cm |
| Weight: |
0.42 kg |
| Item information |
Value |
| Item weight: |
0,52 kg
|
| Content: |
1,00 piece
|
