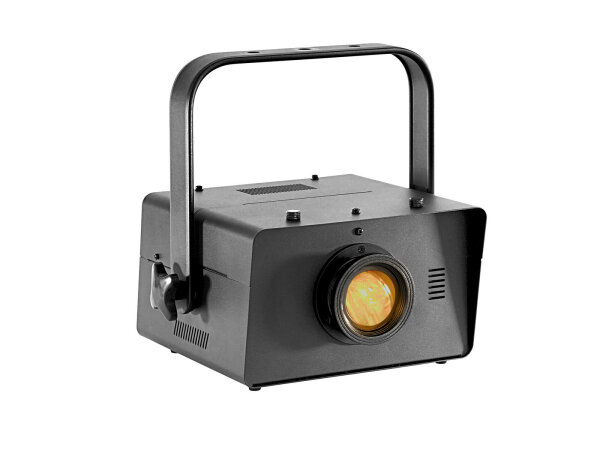

Innovative projection effect with magnetically interchangeable effect wheels
- 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery
- Up to 2 wheels can be easily inserted via magnetic attachment systems
- Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
- 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGBW
- Exact 16 bit resolution at Dimmer, color, gobo rotation
- Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
- Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable
- Water effect; gobo effect; crystal effect
- Gobo wheel with static gobos, 5 gobos
- The device is cooled by temperature-controlled fan
- Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
- Flicker-free
- DMX fail mode (blackout; hold)
- With a beam angle of 35°
- With mounting bracket
- Monochrome OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
- Very quiet working noise
- Application possibility: Suspended; on stand; wall mounting
- Preprogrammed in Light Captain
Scope of delivery
- 1 x light effect
- 1 x power cord
- 1 x user manual
- 4 x effect wheel
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
120 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1.5 mm² H05VV-F |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A |
| Lamp type: |
LED lamp |
| LED type: |
1 x 120 W COB (chip-on-board) 4in1 QCL RGBW |
| Flash rate: |
1 - 37 Hz |
| Equipment: |
Gobo wheel with static gobos; focus manual; animation wheel; texture wheel |
| Gobos: |
Gobo wheel with static gobos, 5 gobos |
| DMX channels: |
6; 10; 17; 20 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
1 x temperature-controlled fan |
| Control: |
DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| DMX fail mode: |
Blackout; hold |
| Beam angle: |
35° |
| Beam angle (1/2 peak): |
35° |
| Beam angle (1/10 peak): |
35° |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
Monochrome OLED display |
| USB port: |
1 x type A |
| Diameter mounting holes: |
3 x Ø10mm |
| Use of brands: |
Built with SEETRONIC connector |
| Material: |
Steel |
| Dimensions: |
Length: 25.2 cm
Width: 30.0 cm
Height: 27.3 cm |
| Weight: |
4.90 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Item weight: |
5,80 kg
|
| Content: |
1,00 piece
|
