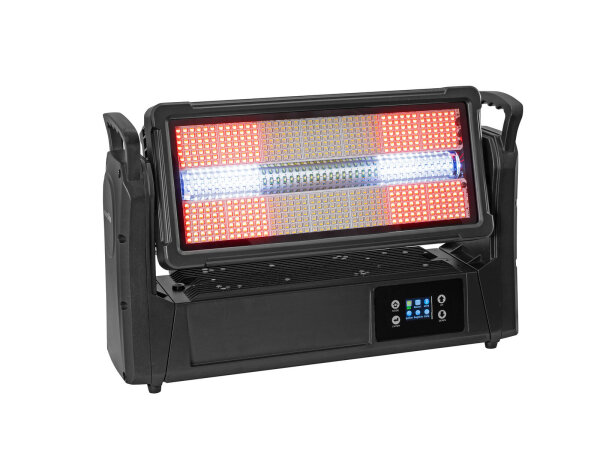

Outdoor spotlight (IP65) with tilt motor for strobe, blinder and matrix effects
- 126 powerful LEDs 3 W SMD 3535 cold white (CW)
7 segments controlled separately
- 588 powerful LEDs 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
14 segments controlled separately
- Positioning within 200° TILT
- Dimmer
- Color macros adjustable; background color adjustable; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; running light adjustable
- Matrix effect; strobe effect; Blinder effect
- 46 integrated show programs
- The device is cooled by cooling fan at the base; temperature-controlled fan at the Head
- Control via DMX; RDM; stand-alone; master/slave function
- Preprogrammed in Light Captain
- Flicker-free
- With a beam angle of 120°
- With omega bracket
- Multicolor TFT display
- 2 Rugged carrying handles
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Architecture; mobile use; stage; rental
- Application possibility: Standing; suspended
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
365 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1,5 mm² H07RN-F |
| Power output: |
IP T-Con (F) mounting version |
| Lamp type: |
LED lamp |
| LED type: |
126 x 3 W SMD 3535 cold white (CW)
588 x 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: |
200° positioning auto position correction (feedback) |
| Flash rate: |
0,5 - 17 Hz |
| Equipment: |
Dimmer |
| DMX channels: |
8; 9; 11; 12; 17; 18; 71 |
| DMX input: |
3-pin XLR (M) mounting version IP
1 x 5-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP
1 x 5-pin XLR (F) mounting version IP |
| Cooling: |
1 x cooling fan at the base
2 x temperature-controlled fan at the Head |
| Control: |
DMX; RDM; stand-alone; master/slave function |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
4100 Hz |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
Matrix effect 120° |
| Beam angle (1/10 peak): |
Matrix effect 170° |
| Housing color: |
Black |
| Attachment system: |
2x omega bracket |
| Display type: |
Multicolor TFT display |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
4 x rubber feet |
| Use of brands: |
Built with SEETRONIC connector |
| Material: |
Aluminum casting |
| Dimensions: |
Width: 52,5 cm
Depth: 14,0 cm
Height: 33,5 cm |
| Weight: |
12,85 kg |
| Noise classification: |
Class 2 (slight noise) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
PDF
| Item information |
Value |
| Item weight: |
13,80 kg
|
| Content: |
1,00 piece
|
