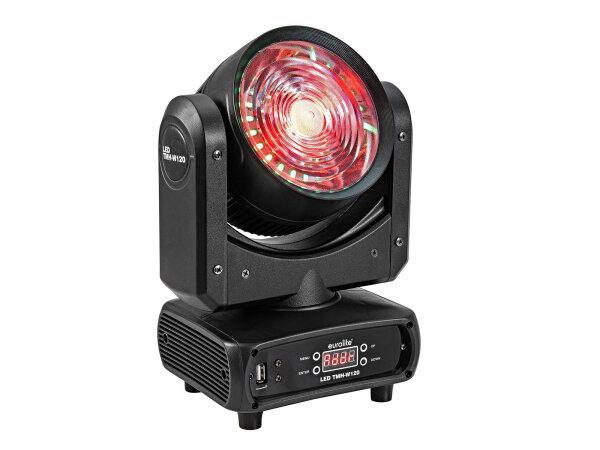

Compact LED moving head wash with 120 W RGB/WW LED and backlighting via RGB hypno LEDs
- 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
- 26 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Positioning within 540° PAN, 200° TILT
- Exact positioning (16 bit resolution)
- Dimmer; dimmer curves adjustable
- Wash effect
- The device is cooled by temperature-controlled fan at the Head; low-noise cooling fan at the base
- Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
- Preprogrammed in Light Captain
- Flicker-free
- DMX fail mode (hold; zero values)
- With a beam angle of 11°
- With omega bracket
- 4 digit 7-segment LED display
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
130 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
26 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Max. TILT movement: |
200° exact positioning (16 bit resolution) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) |
| Flash rate: |
1 - 20 Hz |
| DMX channels: |
23 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
1 x temperature-controlled fan at the Head
1 x low-noise cooling fan at the base |
| Control: |
Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
20000 Hz |
| DMX fail mode: |
Hold; zero values |
| Beam angle: |
11° |
| Beam angle (1/2 peak): |
11° |
| Beam angle (1/10 peak): |
20° |
| Illuminance in Lux (lx): |
Red (R) 1m: 11680 lx, 3m: 1064 lx, 6m: 257 lx
Green (G) 1m: 21059 lx, 3m: 1883 lx, 6m: 429 lx
Blue (B) 1m: 4476 lx, 3m: 434 lx, 6m: 102 lx
Warm white (WW) 1m: 19730 lx, 3m: 1711 lx, 6m: 408 lx
All 1m: 52623 lx, 3m: 4746 lx, 6m: 1108 lx |
| Housing color: |
Black |
| Attachment system: |
Omega bracket |
| Display type: |
4 digit 7-segment LED display |
| USB port: |
Type A |
| Transport aid: |
4 x rubber feet |
| Diameter mounting holes: |
1 x Ø10mm |
| Material: |
Plastic |
| Dimensions: |
Width: 20 cm
Depth: 14 cm
Height: 29 cm |
| Weight: |
3,60 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
