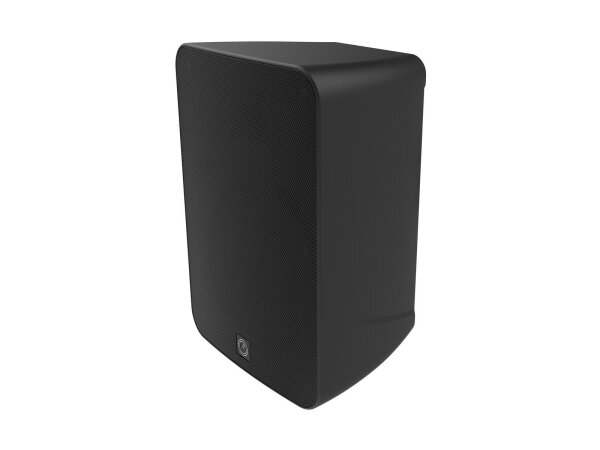

The INTUSCAPE 6FP80R is the most compact choice to bring background music to any venue's outdoor areas. Its one-shell design from impact-proof ABS resin with a recessed baffle insert provides superior protection against rain. A PP cone woofer and a silk dome tweeter likewise withstand the rigors of outdoor use. Nonetheless, the vented design and the controlled dispersion deliver a pristine sound quality. An internal line transformer with switchable load, a real crossover - not just a capacitor - and our unique cable gland cover as well as the ball head bracket complement the elegant looks of this speaker.
Weather-proof 6" speaker (IP33) with mount, 8 ohms, 65 W AES
- Advanced passive crossover for best sound quality
- Power selector switch with 8 ohms operating position
- With Multi-angle ball head bracket with stainless steel rod
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x user manual
- 1 x top
- 1 x screw plug-in terminal
- 2 x nut
- 1 x mounting material
- 1 x screwing
- 1 x lid
| IP classification: |
IP33 |
| Power: |
Program: 130W
Rated: 65W AES |
| Frequency range: |
65 - 20000 Hz |
| Sensitivity: |
84 dB (1W/1m) |
| Max. SPL: |
105.1 dB |
| Dispersion angle: |
90° x 80° |
| Impedance: |
8 ohms; public address systems 100V |
| Attachment system: |
Multi-angle ball head bracket with stainless steel rod |
| Power tapping: |
5W; 10W; 20W; 40W RMS via selector switch switchable |
| Connections: |
Screw plug-in terminal |
| Speaker: |
Woofer 6"
Dome tweeter 1"
Dome drivermaterial: silk with wave guide |
| Type of speaker: |
On ceiling/on wall speaker |
| Type of construction: |
Vented |
| Material: |
ABS Acrylonitrile butadiene styrene |
| Color: |
Black |
| Dimensions: |
Width: 20 cm
Depth: 15.6 cm
Height: 28.5 cm |
| Weight: |
3.45 kg |
| Item information |
Value |
| Item weight: |
3,80 kg
|
| Content: |
1,00 m
|
