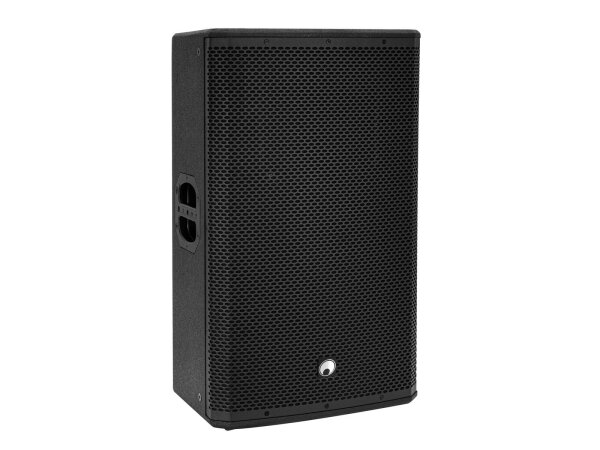

Passive speaker with 15" woofer, 1" driver and 400 W RMS
- Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
- Optimized for combination with PAS subwoofers
- Dual flange
- With rigging points
- Black metal grille with acoustic foam
- Rugged carrying handle
- Application possibility: Standing; suspended; monitoring; on stand
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental
Package contents
- 1 x compact cabinet speaker, 1 x user manual
| Power: |
Program: 800W
Rated: 400W RMS |
| Frequency range: |
50 - 20000 Hz |
| Sensitivity: |
96 dB (1W/1m) |
| Max. SPL: |
125 dB |
| Dispersion angle: |
90° x 60° |
| Impedance: |
8 ohms |
| Attachment system: |
Dual flange: Ø 35mm (0°/5°) |
| Flying points: |
12 x M8 thread; 4 x M10 thread |
| Connections: |
Input: speaker via 2 x speaker built-in socket (F) |
| Crossover frequency: |
2700 Hz |
| Speaker: |
1 x woofer 15" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper
Voice coil lows 3"
1 x compression tweeter highs 1" with ferrit magnet
Voice coil compression tweeter highs 1,75" |
| Type of speaker: |
Compact cabinet speaker |
| Type of construction: |
Vented |
| Carrying handle: |
1 pc/pcs |
| Material: |
Plywood multi-layer glued, 15 mm |
| Color: |
Black, painted |
| Dimensions: |
Width: 41,5 cm
Depth: 71 cm
Height: 40 cm |
| Weight: |
22,05 kg |
