CABLE SOLUTIONS WITH GLANDMASTER SPLICE ADAPTER
For the following items we use our extremely solid
GLANDMASTER
splice adapters. The breakout point is extremely strong, 100 % sealed and has a perfect strain relief. The biggest advantage of these items is that you can
freely choose the breakout position and splice length
. Thus the adapters can be perfectly customised to any possible application.

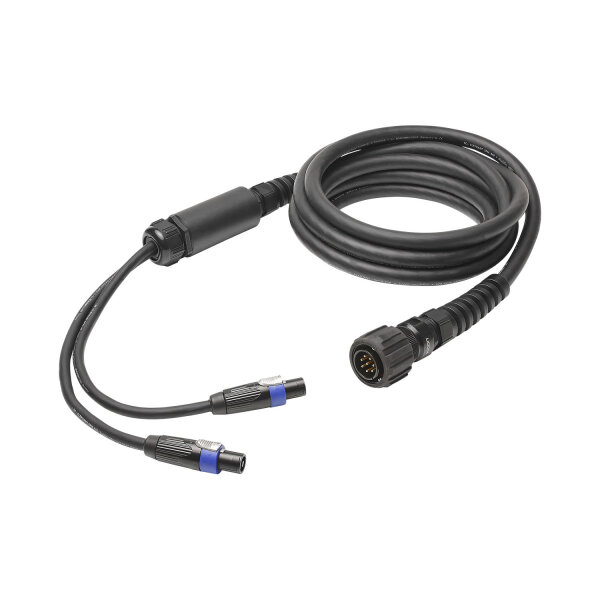

Configuration:
20,00 m Speaker Cable Elephant Robust SPM840; 8 x 4,00 mm²; PVC Ø 18,50 mm; black (
490-0351-840)
0,50 m Speaker Cable Elephant Robust SPM440; 4 x 4,00 mm²; PVC Ø 11,00 mm; black (
490-0051-440)
1 x HICON CA-COM comp. Round contact block, arrangement 22-23, contact size 12, cable outlet straight M32, 8-pole , metal-, Cable connector, bayonet husk, black (
HI-LK008MVR)
2 x NEUTRIK® speakON®, splashproof IP54 , 4-pole , metal-, Soldering-female connector, silver plated contact(s), straight, max. 6 mm², black (
NLT4FXX-BAG)
| Item information |
Value |
| Length [m]: |
20 |
| : |
1.3123 |
| : |
0,4 |
| : |
20 m |
| Content: |
20,00 m
|
