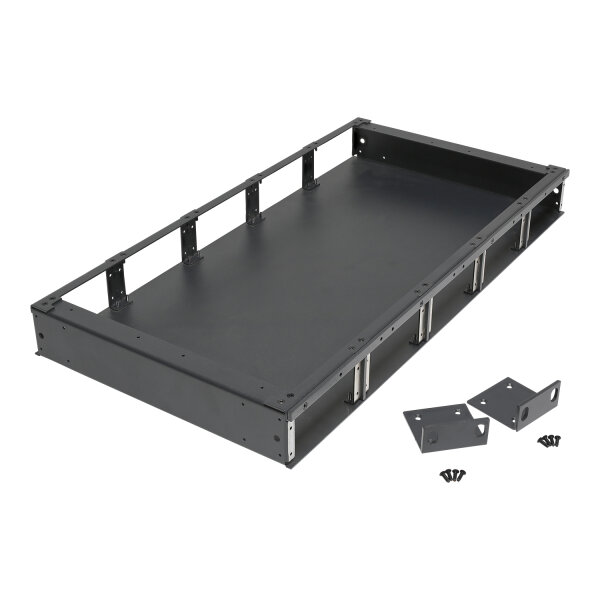

The SYSPANEL5-XL allows the fast and easy construction of patch panels, device connection panels or transfer points, e.g. in control or equipment rooms.
On the front and back side it can be equipped with up to up to 5 CARDINAL DVM 1 WU units (e.g. DVM-SYS-DIS, DVM-SYS-DISH, DVM-HDF4-FIBER-over-HDMI® or also SYSBOXX SYKP cassette profile), 5 SYSBOXX front panels (1 WU, SYFB21-…) or also 5 SYSBOXX connection modules (1B, SYC1-…), thus enabling the realization of modular 1 RU connection panels. The large housing depth also allows an easy integration of extender systems or format changers. The module fronts are integrated flush-mount into the housing front or back.
The individual lettering can be done using our SYSBOXX labeling profile. Optionally the SYSPANEL can be closed from above with two covers (SYSPAN-C).
The supplied rack brackets can be mounted in any orientation on the front or rear side of the device.
The labeling profile as well as the modules are fastened in a time-saving manner with self-tapping M2.5 Torx screws.
Advantages:
High packing density on 1 RU
Great variability due to a wide selection of front panels for front and rear side (e.g. for building a connection panel for media servers)
Large installation depth for an easy integration of active electronics
Flexible, fast equipping
Subsequently alterable and thus future-proof
