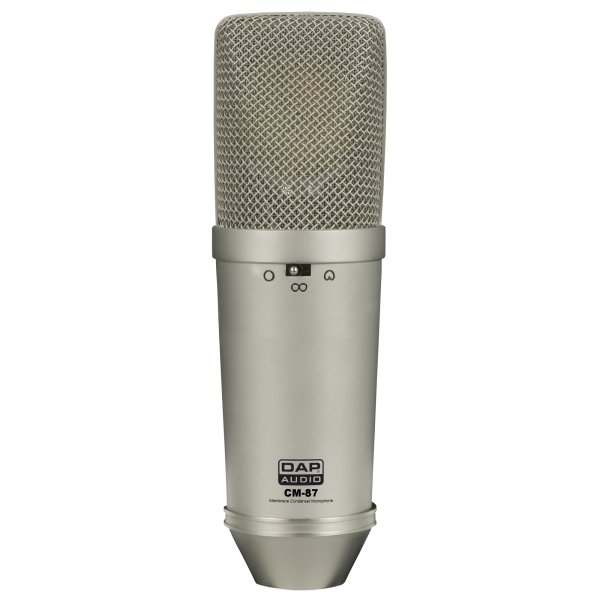

The DAP CM-87 is a large-diaphragm FET condenser studio microphone suitable for perfectly capturing vocals, acoustic ensembles and orchestras. Depending on the type of recording, you can change the pick-up pattern to cardioid (front), figure-of-8 (front and back) or Omnidirectional (all directions). This makes it a versatile and widely applicable studio microphone.
The CM-87 has a large diaphragm which is especially fit for studio recordings or other places with little ambient sounds. A shock mount is included for eliminating unwanted low-frequency rumble, such as structure-borne noise. Besides, a leather pouch is included for safe transport and protection against dust.
Switchable pick-up pattern
Cardioid, figure-of-8 and Omnidirectional element
Large frequency response (20-20,000 Hz)
Low cut filter
Shock mount and leather pouch included
Microphone Output Connection: 3-pin XLR
Microphone Impedance: 200 ?
Microphone Type: Condenser
Microphone Sensitivity: 8 mV
Polar Pattern: Cardioid / Figure-of-8 / Omni
Max. SPL: 140 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Phantom Power: 48 V
Attenuation: -10dB
Length (mm): 167 mm
Height (mm): 50 mm
Width (mm): 50 mm
Diameter: 50 mm
Weight: 0.47 kg
