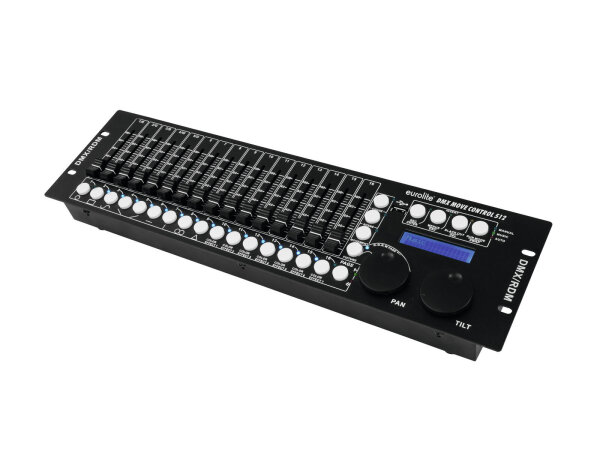

Controller with color & motion effects (28 devices, 18 control channels each)
- DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
- For 28 fixtures with 18 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
- Manual, time-controlled or sound-controlled chase running mode
- 2 DMX fixture levels can be controlled, each with up to 18 channels
- 16 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Can transmit up to 512 DMX channels
- (19") 48.3 cm rack installation 3 U
- Programmable 32 scenes/chases each with 600 cues
- Control via DMX; RDM
- Monochrome LCD display
- Firmware can be updated
- Desktop console housing
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
2,70 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class III |
| Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: |
Programmable 32 scenes/chases each with 600 cues |
| DMX channels: |
Output 512 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Control: |
DMX; RDM |
| Housing color: |
Black |
| Display type: |
Monochrome LCD display |
| Available storage media: |
USB devices (FAT 32) |
| USB port: |
Type A |
| PC connect: |
, firmware can be updated |
| Housing design: |
(19") 48.3 cm rack installation 3 U
Desktop console housing |
| Dimensions: |
Width: 48,3 cm
Depth: 13 cm
Height: 8,9 cm |
| Weight: |
2,39 kg |
| Noise classification: |
Class 0 (no noise at all) |
