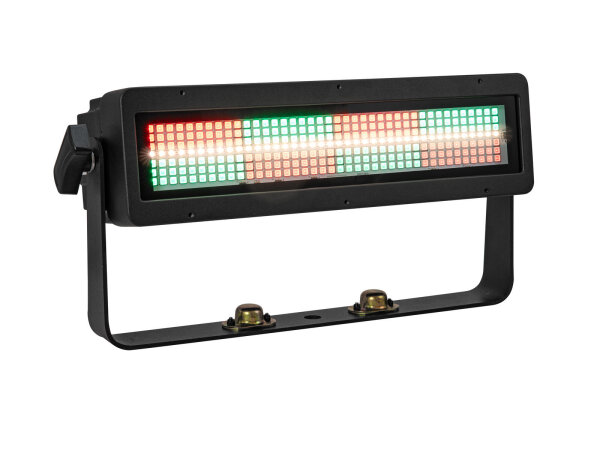

Outdoor spotlight (IP65) for stroboscope, ambient and animation effects
- Compact and bright
- Show programs for white and colored LEDs on separate DMX channels
- 240 powerful LEDs 0,5 W SMD 5050 3in1 TCL RGB
8 segments controlled separately
- 40 powerful LEDs 1 W SMD 3030 2in1 BCL CW/WW
4 segments controlled separately
- Background color adjustable; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; running light adjustable
- 20 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; sound to light via microphone; master/slave function; DMX
- Preprogrammed in Light´J; Light Captain
- Flicker-free
- With a beam angle of 120°
- Variable color temperature 3200 K - 6600 K
- With mounting bracket; with omega bracket
- OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Clubs/dancing school; installation; stage; mobile djs / entertainer; architecture
- Silent operation
- Application possibility: Standing; suspended
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
135 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: |
IP T-Con (F) mounting version |
| Fuse: |
T 5 A fuse fix in power supply |
| Lamp type: |
LED lamp |
| LED type: |
240 x 0,5 W SMD 5050 3in1 TCL RGB
40 x 1 W SMD 3030 2in1 BCL CW/WW |
| Flash rate: |
1 - 25 Hz |
| DMX channels: |
6; 10; 18; 24; 25; 32 |
| DMX input: |
1 x 3-pin XLR (M) mounting version IP |
| DMX output: |
1 x 3-pin XLR (F) mounting version IP |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; sound to light via microphone; master/slave function; DMX |
| Preprogrammed in: |
Light´J; Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
4000 Hz |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Color temperature: |
3200K - 6600K adjustable |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket
Omega bracket |
| Display type: |
OLED display |
| Use of brands: |
Built with SEETRONIC connector |
| Dimensions: |
Length: 38 cm
Depth: 11 cm
Height: 17,6 cm |
| Weight: |
3,60 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø13mm |
| Material: |
Metal, 3 mm |
| Power cord |
| Cable construction: |
3 x 1,5 mm² H07RN-F |
| Cable length: |
Approx. 1,2 m |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Item weight: |
4,05 kg
|
| Content: |
1,00 piece
|
