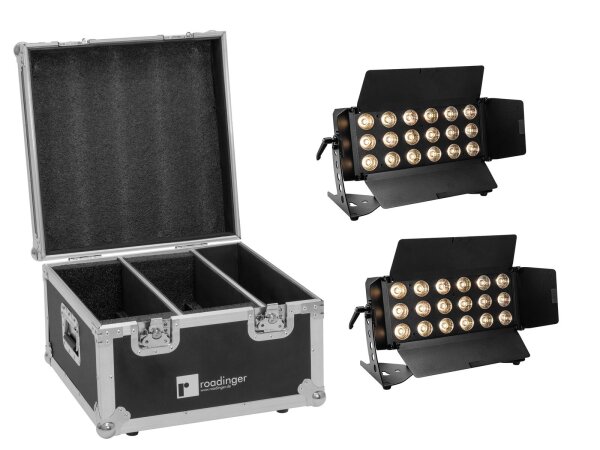

EUROLITE LED CLS-18 QCL RGB/WW 18x7W
LED floodlight with RGB/WW color mixing, barn doors, IR remote control and frost filter
- Additional frost filter provides a wide, soft and homogeneous light
- 18 powerful LEDs 7 W 4in1 QCL RGB/WW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable; white balance
- Strobe effect
- The device is cooled by temperature-controlled fan
- Control via stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); master/slave function; sound to light via microphone; IR remote control
- Preprogrammed in Light´J; EASY SHOW 2; EASY SHOW 3; Colorchief
- Flicker-free
- With a beam angle of 11°
- Direct color temperature selection for 3100 preset values
- With mounting bracket
- OLED display
- Rubber feet
- For application areas such as: Wedding/gala/events; stage; theater; mobile djs / entertainer; restaurants, bars and hotels
- Very quiet working noise
- Application possibility: Standing; suspended; on stand
- 3 buttons on the remote control for saving your own settings
knurled screw
Package contents
- 1 x device, 1 x power cord, 1 x frost filter, 1 x remote control, 4 x knurled screw, 1 x user manual
ROADINGER Flightcase 2x LED CLS-18 QCL RGB/WW
Trunk case
- High-quality workmanship with plywood multi-layer glued 9 mm, black, laminated
- Interior with foam padding
cover with foam padding
- Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 x rubber feet
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: |
21,23 kg |
| EUROLITE LED CLS-18 QCL RGB/WW 18x7W |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
104 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug included |
| Power output: |
1 x PowerCON (gray) |
| Fuse: |
T 6,3 A fuse fix on board |
| Lamp type: |
LED lamp |
| LED type: |
18 x 7 W 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate: |
1 - 23 Hz |
| DMX channels: |
3; 4; 6; 8; 11 |
| DMX input: |
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Cooling: |
Temperature-controlled fan |
| Control: |
Stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); master/slave function; sound to light via microphone; IR remote control |
| Preprogrammed in: |
Light´J; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
11° |
| Beam angle (1/2 peak): |
11°
Frost filter 15° |
| Beam angle (1/10 peak): |
26°
Frost filter 37° |
| Housing color: |
Black matte |
| Attachment system: |
Mounting bracket |
| Display type: |
OLED display |
| Transport aid: |
Rubber feet |
| Dimensions: |
Length: 39,6 cm
Width: 14,3 cm
Height: 21,3 cm |
| Weight: |
4,75 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø11mm; 2 x Ø8mm; 8 x Ø15mm |
| Material: |
Metal, 2 mm |
| Power cord |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
Approx. 1,2 m |
| Frost filter |
| Diameter mounting holes: |
4 x Ø4,5mm |
| Material: |
Plastic, 2 mm |
| Dimensions: |
Width: 28,3 cm
Height: 11,6 cm |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Barndoor |
| Material: |
Metal, 0,8 mm |
| Dimensions: |
Width: 46,5 cm
Height: 28,5 cm |
| Knurled screw |
| Thread: |
M4 thread x 8 mm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| ROADINGER Flightcase 2x LED CLS-18 QCL RGB/WW |
| Aluminum profile frames: |
30 mm |
| Case handle: |
2 pc/pcs |
| Stop hinge: |
2 pc/pcs |
| Lock: |
Butterfly lock: 2 pc/pcs |
| Transport aid: |
4 x rubber feet |
| Material: |
Plywood multi-layer glued, 9 mm |
| Color: |
Black, laminated |
| Device compartment: |
12 cm x 40 cm x 28 cm |
| Accessory compartment: |
10,5 cm x 47 cm x 28 cm |
| Dimensions: |
Width: 51,5 cm
Depth: 52,5 cm
Height: 35,5 cm |
| Weight: |
10,85 kg |
| Item information |
Value |
| Item weight: |
22,00 kg
|
| Content: |
1,00 piece
|
