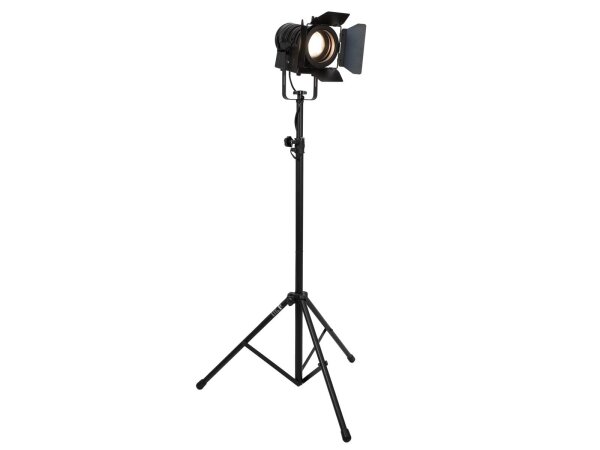

Fanless PC spot with 57 W white light LED including speaker stand
EUROLITE LED THA-40PC TRC Theater Spot bk
Fanless PC spot with 57 W white light LED, color rendering index (CRI) >90
- Rugged metal housing
- 1 powerful LED 57 W COB (chip-on-board) warm white (WW)
- Dimmer electronic
- The device is cooled by passive convection cooling
- Control via stand-alone; rotary dial for brightness; Dimmer
- Flicker-free
- With a beam angle of 12° - 47°
- Very high color rendering index (CRI)
- With mounting bracket
- Rubber feet
- Silent operation
- For application areas such as: Trade fair and shop fitting; wedding/gala/events; restaurants, bars and hotels; video and photography
Package contents
- 1 x spotlight, 1 x barndoor, 1 x filter frame, 1 x user manual
OMNITRONIC Speaker Stand BOB System
Speaker stand for BOB speakers, extendable up to 170 cm
- Tube diameter: Ø 30 mm
- Adjustable height
- Scratchproof and shockproof
Package contents
- 1 x stand, 1 x user manual
| Weight: |
5,98 kg |
| EUROLITE LED THA-40PC TRC Theater Spot bk |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
40 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Fuse: |
5 x 20 mm, T 1 A fuse replaceable |
| LED type: |
1 x 57 W COB (chip-on-board) warm white (WW) |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; rotary dial for brightness; Dimmer |
| Projection: |
Flicker-free |
| Beam angle: |
12° - 47° |
| Beam angle (1/2 peak): |
12 - 36° |
| Beam angle (1/10 peak): |
18 - 47° |
| Color temperature: |
3100K |
| Color rendering index (CRI): |
92 Ra |
| Illuminance in Lux (lx): |
Narrow 3m: 2008 lx, 6m: 514 lx
Wide 3m: 482 lx, 6m: 141 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Transport aid: |
Rubber feet |
| Material: |
Aluminum casting |
| Slot for spot length: |
13,1 cm x 13,1 cm |
| Dimensions: |
Length: 26 cm
Width: 20 cm
Depth: 25 cm |
| Weight: |
3,82 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø10mm; 2 x Ø6mm |
| Material: |
Metal, 3 mm |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1 m |
| Barndoor |
| Material: |
Aluminum, 1,5 mm; metal |
| Ring diameter: |
Outside: 12,9 mm
Inside: 10,9 mm |
| Filter frame |
| Diameter mounting holes: |
1 x Ø4mm |
| Shape: |
Octagonal |
| Material: |
Aluminum, 0,8 mm |
| Dimensions: |
Width: 13 cm
Height: 13 cm
Diameter: Ø 10,5 cm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| OMNITRONIC Speaker Stand BOB System |
| Maximum carrying capacity: |
14 kg |
| Height: |
Maximum: 195 cm
Minimum: 107 cm
Adjustable in 6 steps with locking pin |
| Attachment system: |
M10 thread |
| Type (general stands): |
Speaker stand/manual |
| Material: |
Steel |
| Color: |
Black, painted; , scratchproof and shockproof |
| Main pipe diameter: |
Ø 3 cm |
| Extension tube diameter: |
Ø 2,5 cm |
| Weight: |
2,15 kg |
