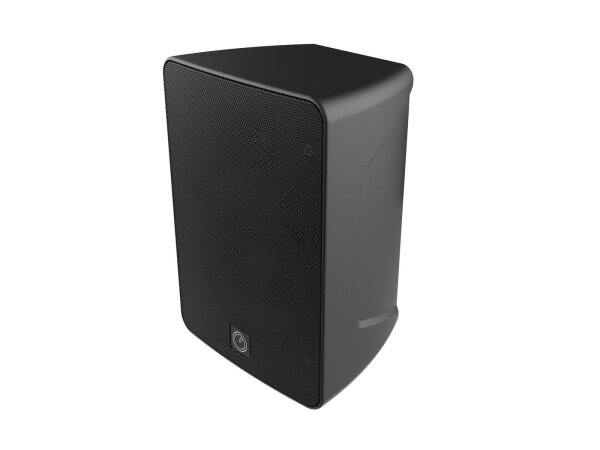

The INTUSCAPE 4FP40R is the most compact choice to bring background music to any venue's outdoor areas. Its one-shell design from impact-proof ABS resin with a recessed baffle insert provides superior protection against rain. A PP cone woofer and a silk dome tweeter likewise withstand the rigors of outdoor use. Nonetheless, the vented design and the controlled dispersion deliver a pristine sound quality. An internal line transformer with switchable load, a real crossover - not just a capacitor - and our unique cable gland cover as well as the ball head bracket complement the elegant looks of this speaker.
Weather-proof 4" speaker (IP33) with mount, 8 ohms, 60 W
- Advanced passive crossover for best sound quality
- Power selector switch with 8 ohms operating position
- With Multi-angle ball head bracket with stainless steel rod
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x user manual
- 1 x top
- 1 x screw plug-in terminal
- 2 x nut
- 1 x mounting material
- 1 x screwing
- 1 x lid
| IP classification: |
IP33 |
| Power: |
Rated: 30W AES
Program: 60W |
| Frequency range: |
80 - 15000 Hz |
| Sensitivity: |
84 dB (1W/1m) |
| Max. SPL: |
100 dB |
| Dispersion angle: |
90° x 80° |
| Impedance: |
8 ohms; public address systems 100V |
| Attachment system: |
Multi-angle ball head bracket with stainless steel rod |
| Power tapping: |
2.5W; 5W; 10W; 20W RMS via selector switch switchable |
| Connections: |
Screw plug-in terminal |
| Speaker: |
1 x woofer 4"
1 x dome tweeter
Dome drivermaterial: silk with wave guide |
| Type of speaker: |
On ceiling/on wall speaker |
| Type of construction: |
Vented |
| Material: |
ABS Acrylonitrile butadiene styrene |
| Color: |
Black |
| Dimensions: |
Width: 15.3 cm
Depth: 12 cm
Height: 21.7 cm |
| Weight: |
2.15 kg |
| Item information |
Value |
| Item weight: |
2,37 kg
|
| Content: |
1,00 m
|
