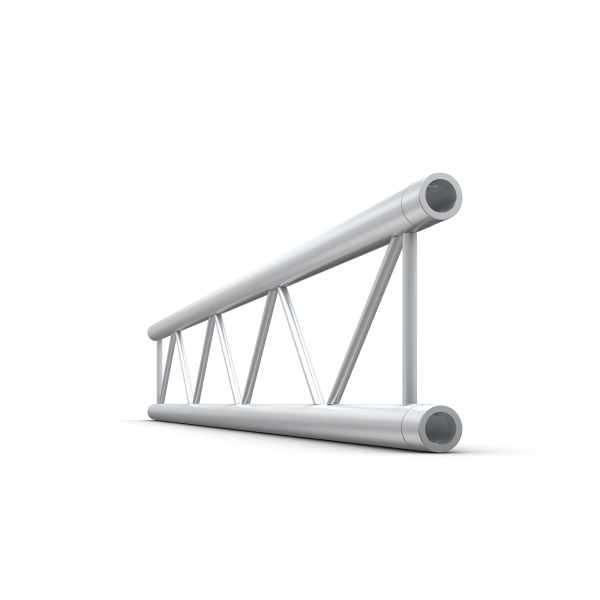

The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.
· F-truss compatible with Prolyte systems (Ø 27.8 mm)
· G-truss compatible with Global & Euro systems (Ø 29.0 mm)
· P-truss compatible with standard Milos truss systems (Ø 29.8 mm)
Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005.
Length (m): 0.5 m
Size: 290 mm x 290 mm
Main Tube Diameter: 50 x 2 mm
Weight: 1.7 kg
Truss System: F
