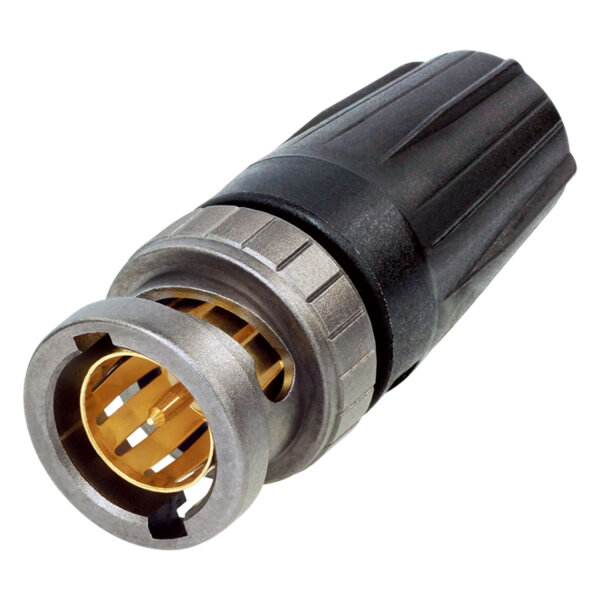

NEUTRIK® BNC, 2-pole , crimp-male connector, straight

SKU: VK-31630
GTIN: 7613187012815
HAN: NBNC75BZV14X
Category: BNC/SDI
Manufacturers: NEUTRIK

Optimised contact pin and insulator design for UHD-data transfer
Swiss Antraloy plating
Improved return loss values at high frequencies
Proven rearTWIST technology
Fully compatible with conventional BNC chassis connectors

7,83 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 6 Workdays (DE - int. shipments may differ)

Piece

Description

The rearTWIST UHD BNC connectors are specifically designed for the transmission of high resolution video signals. Thanks to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals. The NBNC75BZV14X is suitable for cables with pin crimp size 1.6 mm (square) or 1.75 (hex) and shield crimp size 8.23 mm (hex).

Impedance: 0.075 ?
Pins: 1
Length (mm): 37 mm
Height (mm): 15 mm
Width (mm): 15 mm
Weight: 0.015 kg
Housing: Plastic
Colour: Black
Contact Resistance: 3 < m?
Contact Type: Brass
Maximum Ambient Temperature: 85 °C
Minimum Ambient Temperature: -30 °C
Reference Standard: CE
CE/UKCA logo: T/B/A
WEEE logo: T/B/A
Address: Supplier
Product name and code: Yes
