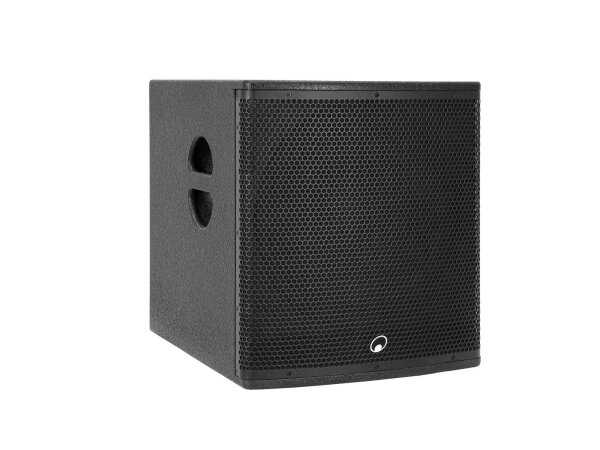

OMNITRONIC MAXX-1508NG Active Subwoofer 15"

OMNITRONIC MAXX-1508NG Active Subwoofer 15"

SKU: VT-13183
GTIN: 4026397747263
Category: Portable systems
Manufacturers: OMNITRONIC

712,81 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 6 Workdays (DE - int. shipments may differ)

Piece

Description
PDF (1)

High-power 15" active subwoofer with DSP and Bluetooth, 800W RMS

Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
4-channel mixer
Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
Black metal grille with acoustic foam
2 Rugged carrying handles
Wheels optional
4 x rubber feet

integrated amplifier module

Digital signal processor
DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
Control via Bluetooth
Bluetooth: operating range up to 10m in buildings
Multicolor LCD display
The device is cooled by low-noise cooling fan

Scope of delivery

1 x bass
1 x power cord
1 x user manual
1 x declaration of conformity

Frequency range:	40 - 150 Hz bass
Max. SPL:	129 dB
DSP:	Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
Attachment system:	M20 thread
Speaker:	1 x woofer 15" with ferrit magnet Basket material: steel Voice coil lows 3" Conematerial: cardboard/paper
Type of speaker:	Subwoofer
Type of construction:	Vented
Carrying handle:	2 pc/pcs
Transport aid:	Wheels optional 4 x rubber feet
Material:	MDF (medium density fiberboard), 15 mm
Color:	Black, textured coating, painted
Dimensions:	Width: 43.5 cm Depth: 52 cm Height: 51 cm
Integrated amplifier module
Power supply:	230 V AC, 50 Hz
Power consumption:	400 W
IP classification:	IP20
Protection class:	Protection class I
Output power:	1 x 500 W RMS LF 2 x 150 W RMS (8 ohms) HF 1 x 300 W RMS (4 ohms) HF
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Device fuse:	5 x 20 mm, T 3.15 A fuse replaceable
DSP:	Digital signal processor
DSP presets:	MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
Cooling:	1 x low-noise cooling fan
Filter:	Low cut: 80 Hz
Control:	Bluetooth
Bluetooth device name:	MAXX-1508NG
Range:	Bluetooth: range up to 10m in buildings
Carrier frequency:	2.4 GHz
Circuitry:	Class D
Display type:	Multicolor LCD display
Control elements:	Power switch, encoder, menu, BACK button
Controls:	Overheat; short-circuit; DC voltage; limiter
Status LED:	Limit
Connections:	Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x RCA (F) mounting version Output: line via 2 x 3-pin XLR (M) mounting version Output: speaker via 2 x speaker built-in socket (F)
Input channels:	1 x stereo via RCA, channel control via rotary dial 3 x mono via XLR or jack, channel control via rotary dial
Crossover frequency:	100 Hz
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	1.8 m
Weight:	0.13 kg
