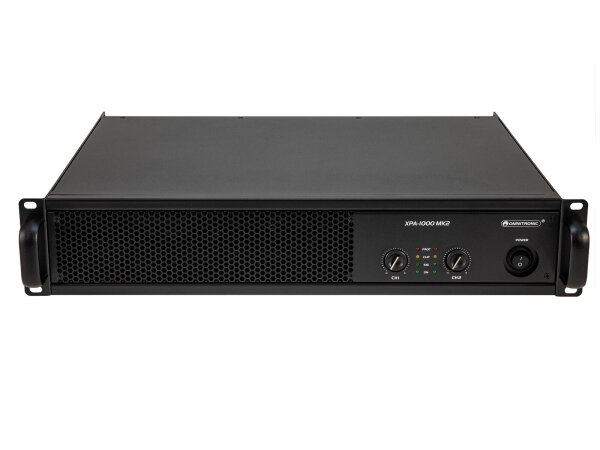

Class AB PA amplifier with limiter, 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)
- 2 level controls
- Signal inputs via XLR or RCA connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Class AB circuitry
- (19") 48.3 cm rack installation possible 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual, 4 x foot
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
710 W 1/8 power |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Output power: |
2 x 500 W RMS (4 ohms)
2 x 300 W RMS (8 ohms)
1000 W RMS bridged (8 ohms) |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: |
5 x 20 mm, F 8 A fuse serviceable |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>95 dB |
| THD: |
<0,05 % at 1 kHz |
| Cooling: |
2 x temperature-controlled fan , air flow from front to rear |
| Impedance: |
Input: 10 kOhm , unbal.
Input: 20 kOhm , bal. |
| Housing color: |
Black |
| Circuitry: |
Class AB |
| Slew rate: |
>20 V/µs |
| Damping factor: |
>200 |
| Control elements: |
Power switch, level control per channel, mode switch (stereo/parallel/bridged) |
| Controls: |
Softstart; DC voltage; VHF; short-circuit; limiter; overheat |
| Status LED: |
Power, signal, clip, protect |
| Connections: |
Input: line via 2 x 3-pin XLR (F) mounting version
Input: line via stereo RCA
Output: speaker via 2 x speaker built-in socket (F)
Output: speaker via screw terminal |
| Input sensitivity: |
1 V |
| Housing design: |
(19") 48.3 cm rack installation possible 2 U |
| Mounting depth: |
33,2 cm |
| Dimensions: |
Width: 48,3 cm
Depth: 36,8 cm
Height: 8,8 cm |
| Weight: |
10,40 kg |
