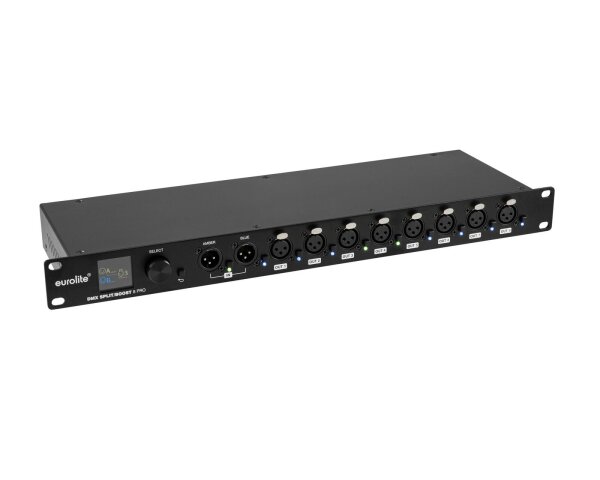

2 in/8 out DMX splitter/merger with RDM support and real-time DMX monitoring
- DMX modes: LTP, HTP, merge or backup
- (19") 48.3 cm rack installation 1 U
- Each DMX output with independent driver and status indicator
- Control via RDM
- Multicolor OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Installation; stage; theater; rental
- Silent operation
- Application possibility: Standing
Package contents
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
5 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
1,45 m |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 1 A fuse replaceable |
| DMX input: |
2 x 3-pin XLR (M) mounting version |
| DMX output: |
8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator |
| Control: |
RDM |
| Housing color: |
Black |
| Attachment system: |
M10 thread |
| Display type: |
Multicolor OLED display |
| Use of brands: |
Built with SEETRONIC connector |
| Material: |
Metal |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Mounting depth: |
23 cm |
| Dimensions: |
Width: 48,3 cm
Depth: 16 cm
Height: 4,4 cm |
| Weight: |
2,23 kg |
| Noise classification: |
Class 0 (no noise at all) |
