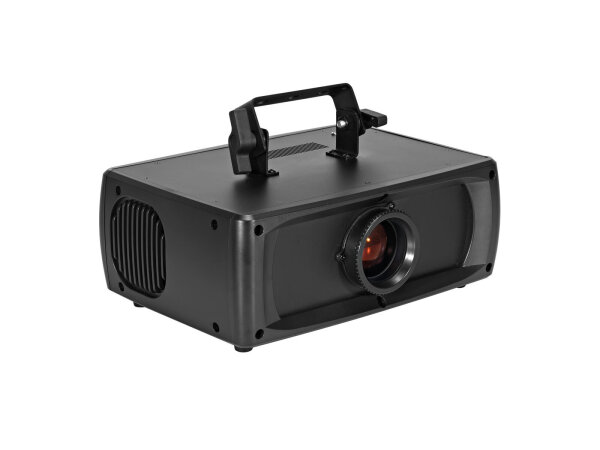

LED projection effect for water reflections with color wheel & DMX
- 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
- Animation wheel; focus manual
- Dimmer; color change adjustable; Rotation speed stepless
- Water effect; strobe effect
- Color wheel with 5 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
- 8 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); stand-alone; DMX; master/slave function; sound to light via microphone
- Preprogrammed in Light Captain; Colorchief
- Flicker-free
- DMX fail mode (hold; blackout)
- With a beam angle of 45°
- With mounting bracket
- 4 digit 7-segment LED display
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; Trade fair and shop fitting; restaurants, bars and hotels
- Application possibility: Suspended; on stand
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
140 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
1,45 m |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 100 W COB (chip-on-board) cold white (CW) |
| Flash rate: |
0 - 30 Hz |
| Equipment: |
Animation wheel; focus manual |
| Color generation: |
Color wheel with 5 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions |
| DMX channels: |
5 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
3 x temperature-controlled fan |
| Control: |
QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); stand-alone; DMX; master/slave function; sound to light via microphone |
| Preprogrammed in: |
Light Captain; Colorchief |
| Projection: |
Flicker-free |
| DMX fail mode: |
Hold; blackout |
| Beam angle: |
45° |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| USB port: |
Type A |
| Transport aid: |
4 x rubber feet |
| Diameter mounting holes: |
3 x Ø12mm |
| Material: |
Metal |
| Dimensions: |
Width: 32,0 cm
Depth: 23,5 cm
Height: 19,5 cm |
| Weight: |
4,75 kg |
| Noise classification: |
Class 2 (slight noise) depending on mode used |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Item weight: |
5,50 kg
|
| Content: |
1,00 piece
|
