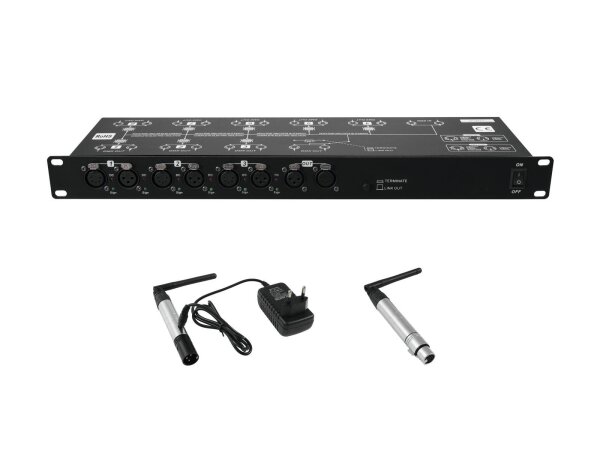

DMX splitter with one wireless DMX transmitter and a phantom powered wireless DMX receiver
EUROLITE DMX Split 8X Splitter
Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs XLR 3-pin and 5-pin each
- Input and outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Controlling by DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x device, 1 x user manual, 1 x power cord
EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Controlling by QuickDMX; DMX; plug and play
- Operating range up to 400m
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
EUROLITE QuickDMX Wireless receiver phantom-power
Compact wireless DMX receiver 2.4 GHz, phantom powered
- User-friendly 5-pin XLR adapter(female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Controlling by DMX; QuickDMX; plug and play
- Operating range up to 400m
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity
| Weight: |
2,46 kg |
| EUROLITE DMX Split 8X Splitter |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
5 W |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| DMX input: |
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: |
8 x 3-pin XLR (F) mounting version Separate (galvanic)
8 x 5-pin XLR (F) mounting version Separate (galvanic)
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass |
| Control: |
DMX; QuickDMX via 5-pin XLR (M) mounting version (optional) |
| Control elements: |
Bypass/terminating resistor Schalter, power switch |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 14,5 cm
Height: 4,45 cm |
| Weight: |
2,22 kg |
| EUROLITE QuickDMX Wireless Transmitter |
| Power supply: |
100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP classification: |
IP20 |
| Power connection: |
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| DMX channels: |
Output 512 |
| DMX input: |
1 x 3-pin XLR (M) |
| Control: |
QuickDMX; DMX; plug and play |
| Carrier frequency: |
2,4 GHz |
| Modulation: |
GFSK |
| Parallel mode: |
Max. 6 transmitter |
| Range: |
Range up to 400m |
| Color: |
Silver |
| Dimensions: |
Length: 21,2 cm
Diameter: Ø 1,8 cm |
| Weight: |
150 g |
| EUROLITE QuickDMX Wireless receiver phantom-power |
| Power supply: |
5 V DC |
| IP classification: |
IP20 |
| Power connection: |
Mains input via 5-pin XLR (W) connector |
| DMX channels: |
Input 512 |
| DMX output: |
1 x 5-pin XLR (F) |
| Control: |
DMX; QuickDMX; plug and play |
| Carrier frequency: |
2,4 GHz |
| Modulation: |
GFSK |
| Parallel mode: |
Max. 6 transmitter |
| Range: |
Range up to 400m |
| Color: |
Silver |
| Dimensions: |
Length: 21,2 cm
Diameter: Ø 1,8 cm |
| Weight: |
100 g |
